Oracle Fixed Discount Auctioneer (OFDA)

Oracle Fixed Discount Auctioneer allows market creators to sell tokens at a discount to a price provided by an oracle, likely in exchange for vesting the tokens over a certain amount of time. Typically, longer duration vesting will require a larger discount. Additionally, larger discounts may be required for smaller cap tokens or when market demand is low. Unlike the SDA auction variants, it will not adjust price to sell out the capacity over the duration.

Market creators can also set a minimum total discount from the starting price, which creates a hard floor for the market price.

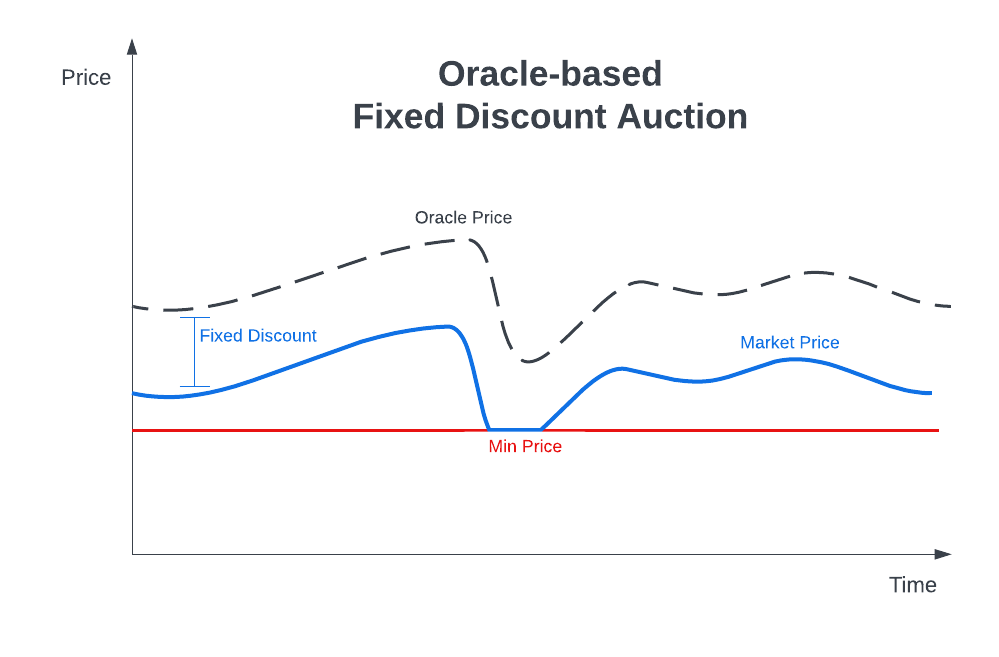

The below chart shows a notional example of how price might evolve over an OFDA market.

Notional Price of OFDA Market over Time

The Base OFDA contract has the following data structures, variables, and methods.

Data Structures (Structs)

MarketParams

Parameters to create a new OFDA market. Encoded as bytes and provided as input to createMarket.

struct MarketParams {
    ERC20 payoutToken;
    ERC20 quoteToken;
    address callbackAddr;
    IBondOracle oracle;
    uint48 fixedDiscount;
    uint48 maxDiscountFromCurrent;
    bool capacityInQuote;
    uint256 capacity;
    uint48 depositInterval;
    uint48 vesting;
    uint48 start;
    uint48 duration;
}

Field	Type	Description
payoutToken	ERC20 (address)	Payout Token (token paid out by market and provided by creator)
quoteToken	ERC20 (address)	Quote Token (token to be received by the market and provided by purchaser)
callbackAddr	address	Callback contract address, should conform to IBondCallback. If 0x00, tokens will be transferred from market owner. Using a callback requires whitelisting by the protocol
oracle	IBondOracle (address)	Oracle contract address, must conform to IBondOracle. Provides current price data for the quote/payout token pair.
fixedDiscount	uint48	Fixed discount (%) of the market from the oracle price. Units are a percent with 3 decimals of precision (e.g. 10_000 = 10%)
maxDiscountFromCurrent	uint48	Max Discount (%) from the oracle price when the time the market is created. Sets a minimum price for the market. Units are a percent with 3 decimals of precision (e.g. 10_000 = 10%).
capacityInQuote	bool	Is Capacity in Quote Token?
capacity	uint256	Capacity (amount in quote token decimals or amount in payout token decimals). Set capacityInQuote flag appropriately.
depositInterval	uint48	Target deposit interval for purchases (in seconds). Determines the maxPayout of the market. Minimum is 1 hour (3600 seconds)
vesting	uint48	Is fixed term ? Vesting length (seconds) : Vesting expiry (timestamp). A 'vesting' param longer than 50 years is considered a timestamp for fixed expiry
start	uint48	Start time of the market as a timestamp. Allows starting a market in the future. If provided, the transaction must be sent prior to the start time. If not provided, the market will start immediately.
duration	uint48	Duration of the market in seconds.

BondMarket

BondMarket contains the token, callback, capacity, owner, and purchased/sold amount data for a Oracle Fixed Discount Market.

struct BondMarket {
    address owner; // market owner. sends payout tokens, receives quote tokens (defaults to creator)
    ERC20 payoutToken; // token to pay depositors with
    ERC20 quoteToken; // token to accept as payment
    address callbackAddr; // address to call for any operations on bond purchase. Must inherit to IBondCallback.
    bool capacityInQuote; // capacity limit is in payment token (true) or in payout (false, default)
    uint256 capacity; // capacity remaining
    uint256 maxPayout; // max payout tokens out in one order
    uint256 sold; // payout tokens out
    uint256 purchased; // quote tokens in
}

BondTerms

BondTerms contains the oracle, pricing, and time parameters of an Oracle Fixed Discount Market.

struct BondTerms {
    IBondOracle oracle; // address to call for reference price. Must implement IBondOracle.
    uint48 start; // timestamp when market starts
    uint48 conclusion; // timestamp when market no longer offered
    uint48 vesting; // length of time from deposit to expiry if fixed-term, vesting timestamp if fixed-expiry
    uint48 fixedDiscount; // fixed discount percent for the market
    uint256 minPrice; // minimum price (hard floor for the market)
    uint256 scale; // scaling factor for the market (see MarketParams struct)
    uint256 oracleConversion; // conversion factor for oracle -> market price
}

Public Variables and View Methods

allowNewMarkets

function allowNewMarkets() external view returns (bool)

Whether or not the auctioneer allows new markets to be created

Changing to false will sunset the auctioneer after all active markets end

authority

function authority() external view returns (contract Authority)

Roles authority contract for the bond system which managed access-control to permissioned functions.

callbackAuthorized

function callbackAuthorized(address) external view returns (bool)

Whether or not the market creator is authorized to use a callback address

Parameters

Name	Type	Description
creator_	address	Market creator address.

currentCapacity

function currentCapacity(uint256 id_) external view returns (uint256)

Returns current capacity of a market

Parameters

Name	Type	Description
id_	uint256	Market ID

getAggregator

function getAggregator() external view returns (contract IBondAggregator)

Returns the Aggregator that services the Auctioneer

getMarketInfoForPurchase

function getMarketInfoForPurchase(uint256 id_) external view returns (address owner, address callbackAddr, contract ERC20 payoutToken, contract ERC20 quoteToken, uint48 vesting, uint256 maxPayout_)

Provides information for the Teller to execute purchases on a Market

Parameters

Name	Type	Description
id_	uint256	Market ID

Returns

Name	Type	Description
owner	address	Address of the market owner (tokens transferred from this address if no callback)
callbackAddr	address	Address of the callback contract to get tokens for payouts
payoutToken	contract ERC20	Payout Token (token paid out) for the Market
quoteToken	contract ERC20	Quote Token (token received) for the Market
vesting	uint48	Timestamp or duration for vesting, implementation-dependent
maxPayout_	uint256	Maximum amount of payout tokens you can purchase in one transaction

getTeller

function getTeller() external view returns (contract IBondTeller)

Returns the Teller that services the Auctioneer

isInstantSwap

function isInstantSwap(uint256 id_) external view returns (bool)

Does market send payout immediately

Parameters

Name	Type	Description
id_	uint256	Market ID

isLive

function isLive(uint256 id_) external view returns (bool)

Is a given market accepting deposits

Parameters

Name	Type	Description
id_	uint256	Market ID

marketPrice

function marketPrice(uint256 id_) external view returns (uint256)

Calculate current market price. Value returned is the number of quote tokens per payout token. The value is the oracle price scaled by the BondTerms.oracleConversion factor. marketPrice and marketScale can be used to convert between amounts of quote tokens and payout tokens at the current price.

Parameters

Name	Type	Description
id_	uint256	Market ID

marketScale

function marketScale(uint256 id_) external view returns (uint256)

Scale value to use when converting between quote token and payout token amounts with marketPrice()

Parameters

Name	Type	Description
id_	uint256	Market ID

markets

function markets(uint256) external view returns (address owner, contract ERC20 payoutToken, contract ERC20 quoteToken, address callbackAddr, bool capacityInQuote, uint256 capacity, uint256 maxPayout, uint256 sold, uint256 purchased)

Returns the token, callback, capacity, owner, and purchased/sold amount data for a market. See BondMarket.

Parameters

Name	Type	Description
id_	uint256	Market ID

maxAmountAccepted

function maxAmountAccepted(uint256 id_, address referrer_) external view returns (uint256)

Returns maximum amount of quote token accepted by the market

Parameters

Name	Type	Description
id_	uint256	Market ID
referrer_	address	Address of referrer, used to get fees to calculate accurate payout amount. Inputting the zero address will take into account just the protocol fee.

maxPayout

function maxPayout(uint256 id_) external view returns (uint256)

Calculate max payout of the market in payout tokens

Returns a dynamically calculated payout or the maximum set by the creator, whichever is less. If the remaining capacity is less than the max payout, then that amount will be returned.

Parameters

Name	Type	Description
id_	uint256	Market ID

minDepositInterval

function minDepositInterval() external view returns (uint48)

Minimum deposit interval for a market

minMarketDuration

function minMarketDuration() external view returns (uint48)

Minimum market duration in seconds

newOwners

function newOwners(uint256) external view returns (address)

New address to designate as market owner. They must accept ownership to transfer permissions.

Parameters

Name	Type	Description
id_	uint256	Market ID

ownerOf

function ownerOf(uint256 id_) external view returns (address)

Returns the address of the market owner

Parameters

Name	Type	Description
id_	uint256	Market ID

payoutFor

function payoutFor(uint256 amount_, uint256 id_, address referrer_) external view returns (uint256)

Payout due for amount of quote tokens at current market price

Parameters

Name	Type	Description
amount_	uint256	Amount of quote tokens to spend
id_	uint256	Market ID
referrer_	address	Address of referrer, used to get fees to calculate accurate payout amount. Inputting the zero address will take into account just the protocol fee.

terms

function terms(uint256) external view returns (contract IBondOracle oracle, uint48 start, uint48 conclusion, uint48 vesting, uint48 fixedDiscount, uint256 minPrice, uint256 scale, uint256 oracleConversion)

Information pertaining to oracle, pricing, and time parameters. See BondTerms.

Parameters

Name	Type	Description
id_	uint256	Market ID

State-Mutating Methods

closeMarket

function closeMarket(uint256 id_) external nonpayable

Disable existing bond market. Must be market owner

Parameters

Name	Type	Description
id_	uint256	Market ID

createMarket

function createMarket(bytes params_) external nonpayable returns (uint256)

Creates a new bond market

See MarketParams for the required formatting for the abi-encoded input params.

Parameters

Name	Type	Description
params_	bytes	Configuration data needed for market creation, encoded in a bytes array

Returns

id_

uint256

Market ID

pullOwnership

function pullOwnership(uint256 id_) external nonpayable

Accept ownership of a marketMust be market newOwner

The existing owner must call pushOwnership prior to the newOwner calling this function

Parameters

Name	Type	Description
id_	uint256	Market ID

purchaseBond

function purchaseBond(uint256 id_, uint256 amount_, uint256 minAmountOut_) external nonpayable returns (uint256 payout)

Exchange quote tokens for a bond in a specified market. Must be teller. End users interact with the Teller contract to purchase.

Parameters

Name	Type	Description
id_	uint256	Market ID
amount_	uint256	Amount to deposit in exchange for bond (after fee has been deducted)
minAmountOut_	uint256	Minimum acceptable amount of bond to receive. Prevents front-running

Returns

Name	Type	Description
payout	uint256	Amount of payout token to be received from the bond

pushOwnership

function pushOwnership(uint256 id_, address newOwner_) external nonpayable

Designate a new owner of a marketMust be market owner

Doesn't change permissions until newOwner calls pullOwnership

Parameters

Name	Type	Description
id_	uint256	Market ID
newOwner_	address	New address to give ownership to

setAllowNewMarkets

function setAllowNewMarkets(bool status_) external nonpayable

Change the status of the auctioneer to allow creation of new markets

Setting to false and allowing active markets to end will sunset the auctioneer

Parameters

Name	Type	Description
status_	bool	Allow market creation (true) : Disallow market creation (false)

setCallbackAuthStatus

function setCallbackAuthStatus(address creator_, bool status_) external nonpayable

Change whether a market creator is allowed to use a callback address in their markets or not. Must be guardian

Callback is believed to be safe, but a whitelist is implemented to prevent abuse

Parameters

Name	Type	Description
creator_	address	Address of market creator
status_	bool	Allow callback (true) : Disallow callback (false)

setMinDepositInterval

function setMinDepositInterval(uint48 depositInterval_) external nonpayable

Set the minimum deposit interval. Access controlled

Parameters

Name	Type	Description
depositInterval_	uint48	Minimum deposit interval in seconds

setMinMarketDuration

function setMinMarketDuration(uint48 duration_) external nonpayable

Set the minimum market duration. Access controlled

Parameters

Name	Type	Description
duration_	uint48	Minimum market duration in seconds

Events

MarketClosed

event MarketClosed(uint256 indexed id)

Parameters

Name	Type	Description
id indexed	uint256	Market ID

MarketCreated

event MarketCreated(uint256 indexed id, address indexed payoutToken, address indexed quoteToken, uint48 vesting)

Parameters

Name	Type	Description
id indexed	uint256	Market ID
payoutToken indexed	address	Address of the payout token
quoteToken indexed	address	Address of the quote token
vesting	uint48	Vesting duration or timestamp

Errors

The following custom errors are used in the OFDA contract to denote specific revert conditions. The errors are prefixed with "Auctioneer" to denote that it is within this contract when multi-contract actions are performed (such as buying a bond).

error Auctioneer_OnlyMarketOwner();
error Auctioneer_MarketNotActive();
error Auctioneer_MaxPayoutExceeded();
error Auctioneer_AmountLessThanMinimum();
error Auctioneer_NotEnoughCapacity();
error Auctioneer_InvalidCallback();
error Auctioneer_BadExpiry();
error Auctioneer_InvalidParams();
error Auctioneer_NotAuthorized();
error Auctioneer_NewMarketsNotAllowed();
error Auctioneer_OraclePriceZero();
